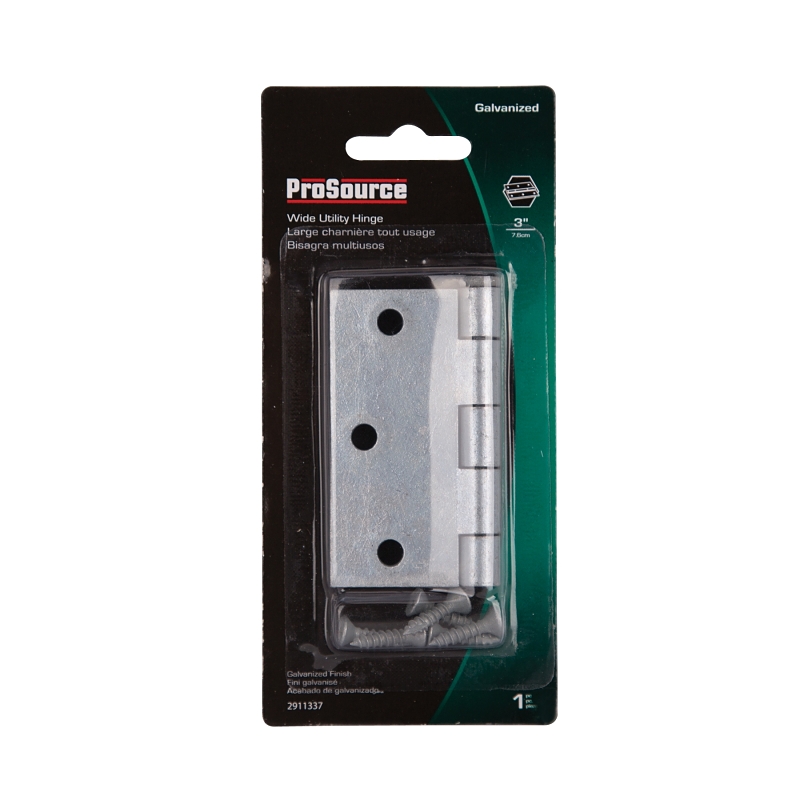

ProSource LR-044-PS Utility Hinge, Steel, Galvanized, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

ProSource

ProSource LR-044-PS Utility Hinge, Steel, Galvanized, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

$6.99$6.99
ProSource LR-044-PS Utility Hinge, Steel, Galvanized, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting
  • Color: Silver
  • Dimensions: 3 in L x 3 in W
  • Door Leaf Height: 3 in
  • Door Leaf Thickness: 2.3 mm
  • Door Leaf Width: 1-1/4 in
  • Model #: LR-044-PS
  • UPC #: 045734647312
  • SKU: 2911337

Your shopping list will be used for pickup in-store

Product Details

The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.

Key Features

  • Steel with galvanized finish
  • Square corner
  • Five knuckles, removable pin
  • For general utility use on lightweight doors

Item Specifications

ColorSilver
Dimensions3 in L x 3 in W
Door Leaf Height3 in
Door Leaf Thickness2.3 mm
Door Leaf Width1-1/4 in
FinishGalvanized
Hole Spacing1-1/4 in
IncludesMounting Hardware
Knuckle Diameter7 mm
Knuckle Length11 mm
MaterialSteel
Mounting Hole Diameter6 mm
Mounting TypeFull Mortise
Number of Knuckles5
Number of Mounting Holes6
Pin Diameter5.2 mm
Pin TypeRemovable
Range of Motion180 deg
Suitable forLightweight Doors
Weight Capacity50 (Pair) lb
